Trepanning

Genesee manufactures trepanning tools using special blades in a hollow mill body for trepanning diameters, forms and ring grooves in metals and other materials. We can design a special trepanning tool to meet your specific requirements.

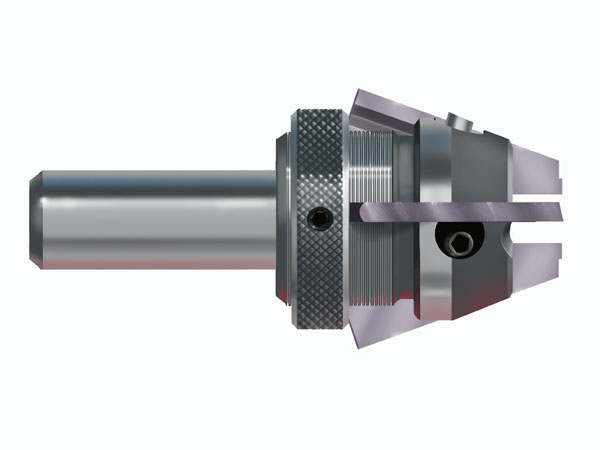

Example at right shows special H.S.S. blades in standard hollow mill set to cut .160 diameter and trepan undercut. The range of adjustability allows the customer to produce a range of part sizes with the same tool.

A titanium medical part at right shows a typical application where form blades produce a post diameter and a surrounding radius formed trepan.


Click on the image for a more detailed view.

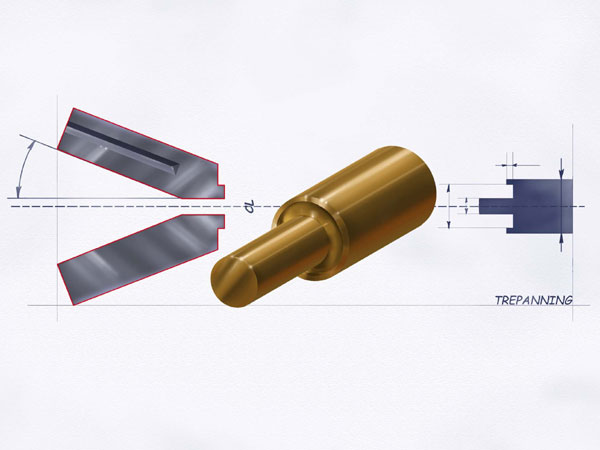

Special H.S.S. Blades

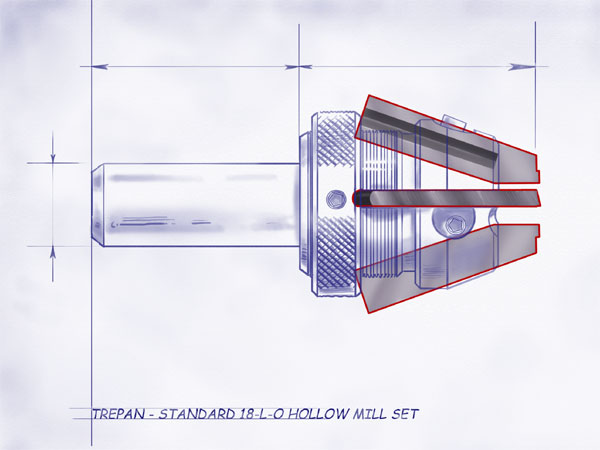

Blade Set in Tool


3 Blades Per Set

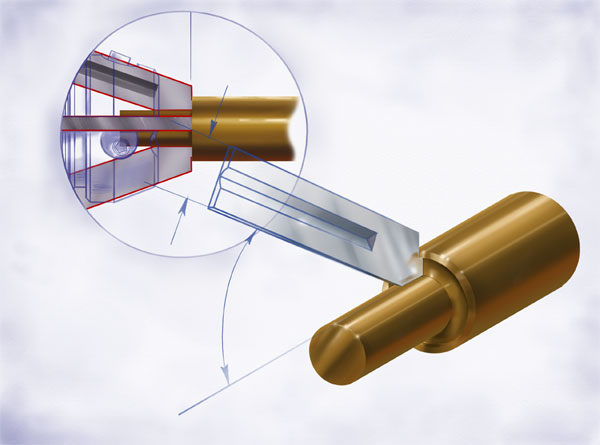

Blade Close-up

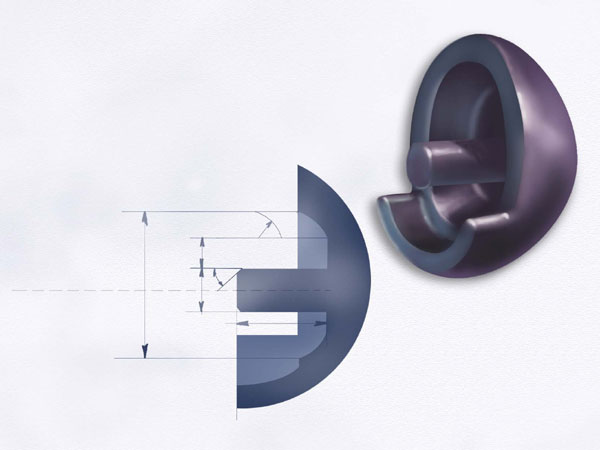

Trepanning on Shoulder Joint
