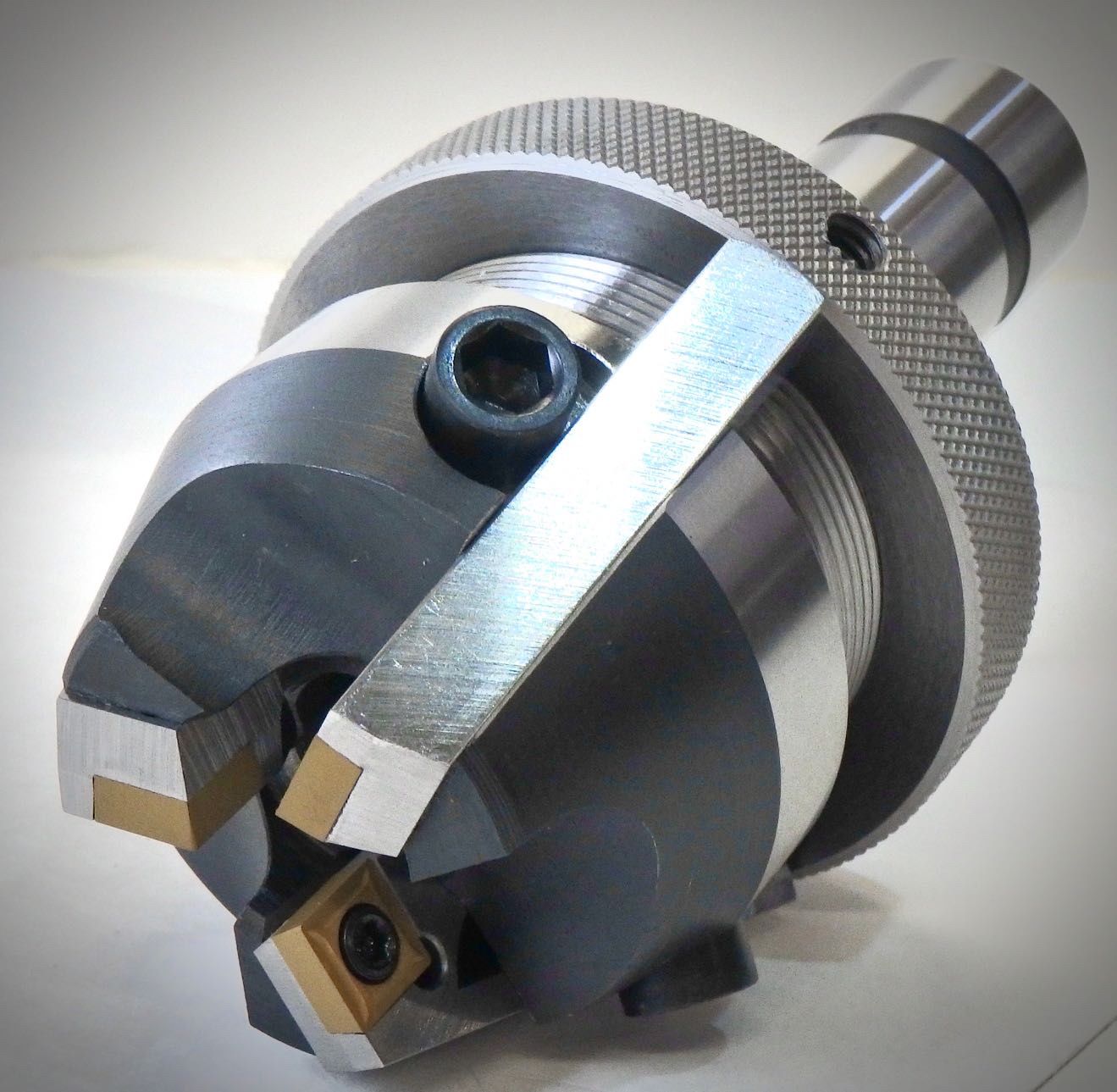

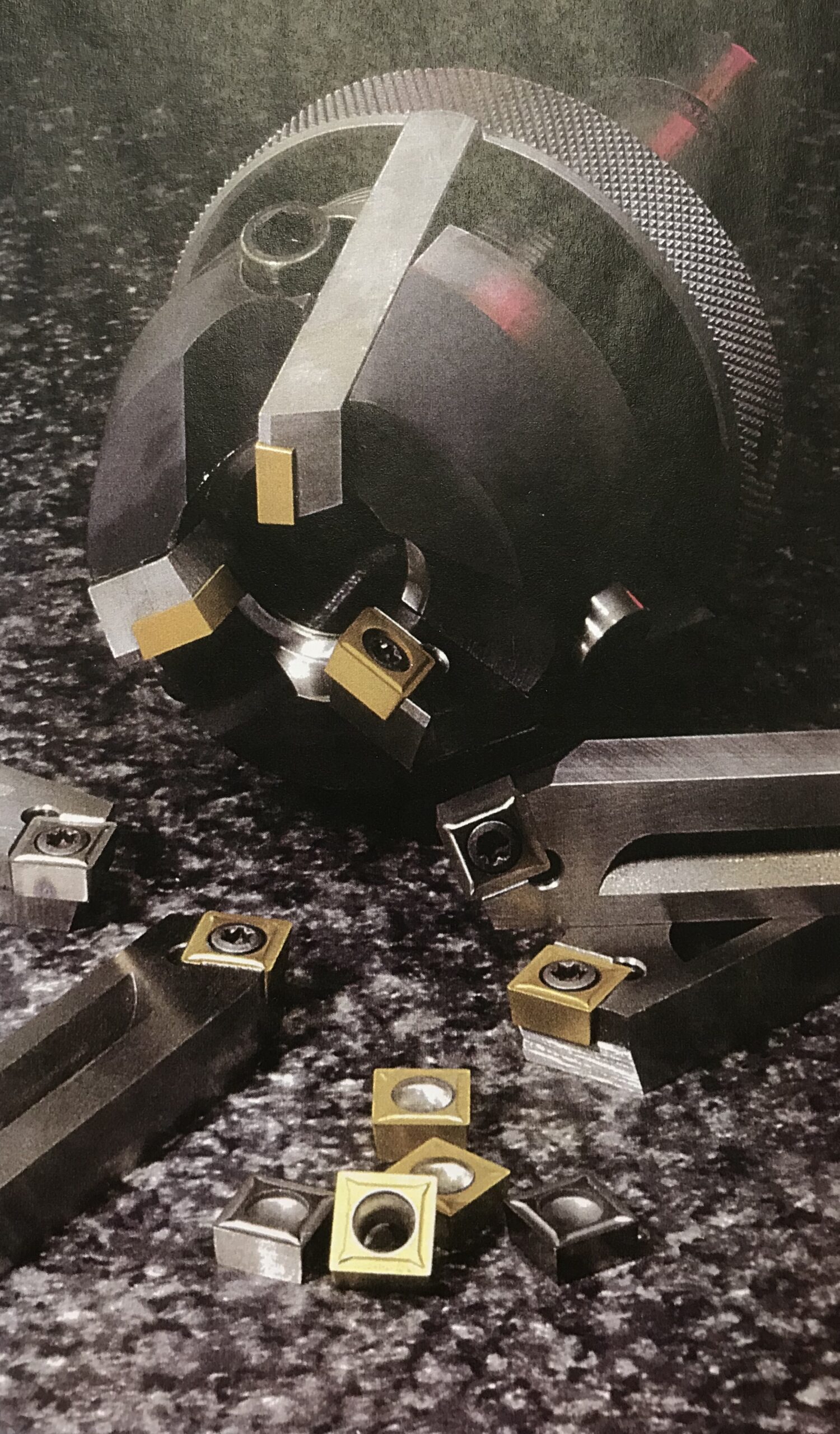

Combines standard ISO inserts in precision, match ground, uniformly adjustable insert holders for hollow milling both ferrous and non-ferrous materials.

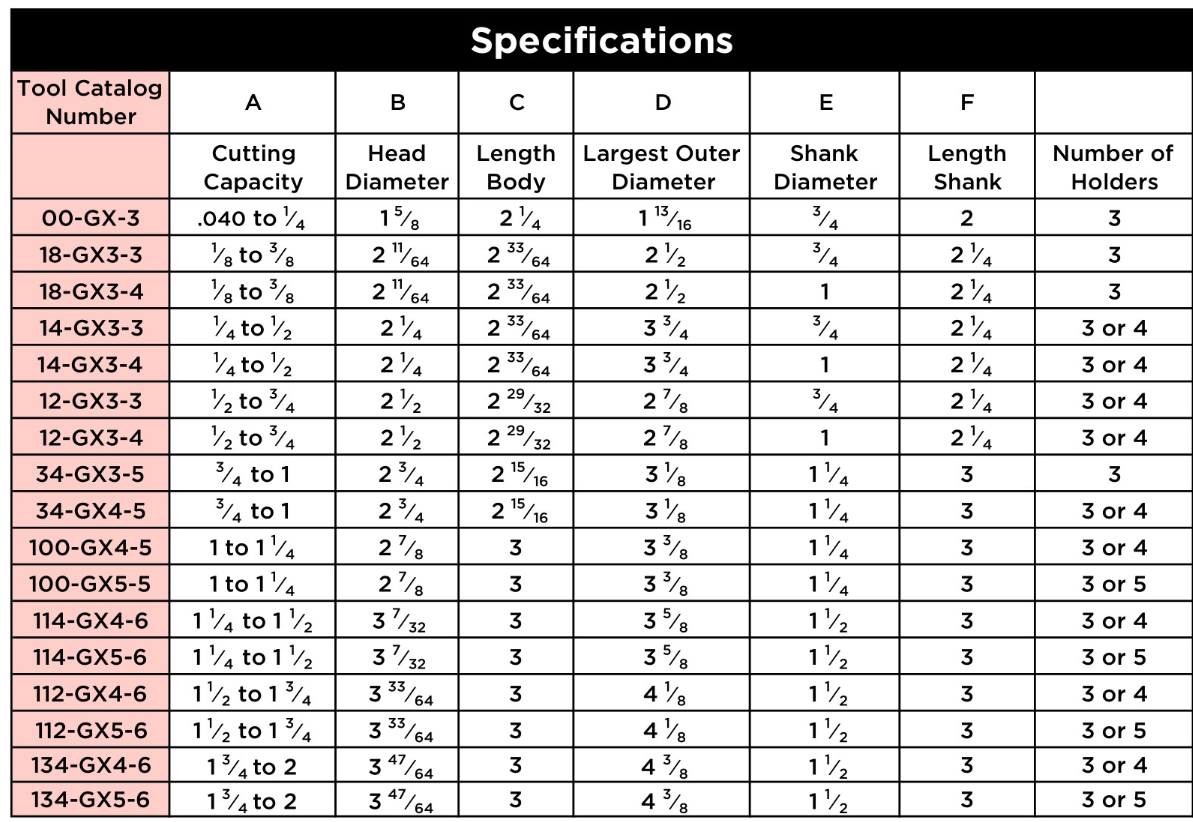

Tools have ¼” range of adjustability from .040″ to 2″ diameters.
A unique combination of toolholder geometry and insert geometry produces constant axial and radial rake and constant clearance angles through the entire range of diameter adjustment.
All tools have at least three, and, in larger sizes, as many as five inserts hollow milling for maximum productivity.

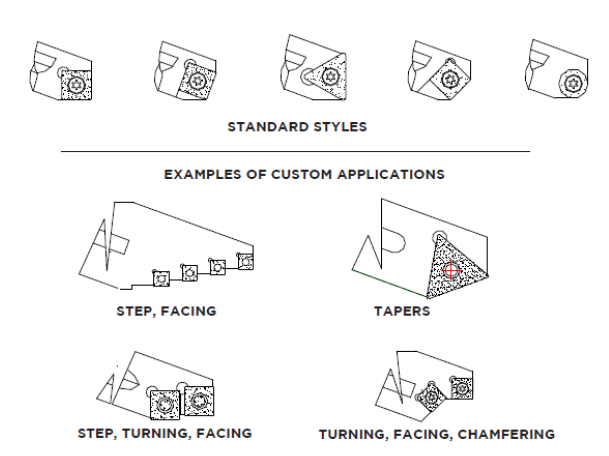

Tools are standard with straight shanks for use with toolholders in CNC machining centers, lathes and screw machines or in conventional turning, milling or automatic screw machines. All tool bodies are precision hardened and ground for years of dependable use. Special tools, shanks, toolholders quoted on application.
Genesee’s large selection of precision ground GEN-DEX® inserts provide the distinct advantage of the “C” tolerance on I.C. and thickness. This feature, normally available only by special order, contributes to optimum, balanced cutting of the hollow mill.
Hone and Edge Preparation: as indicated by letter following insert description:
Example: SCCT 32.52A
F= up sharp (no Hone)
A= .001 to .003 Hone (light)
B= .003 to .005 Hone (medium)
C= .005 to .007 Hone (heavy)
X= .0002 to.0005 Hone (very light)
T= T-land chamfered edge (extra strong dge)

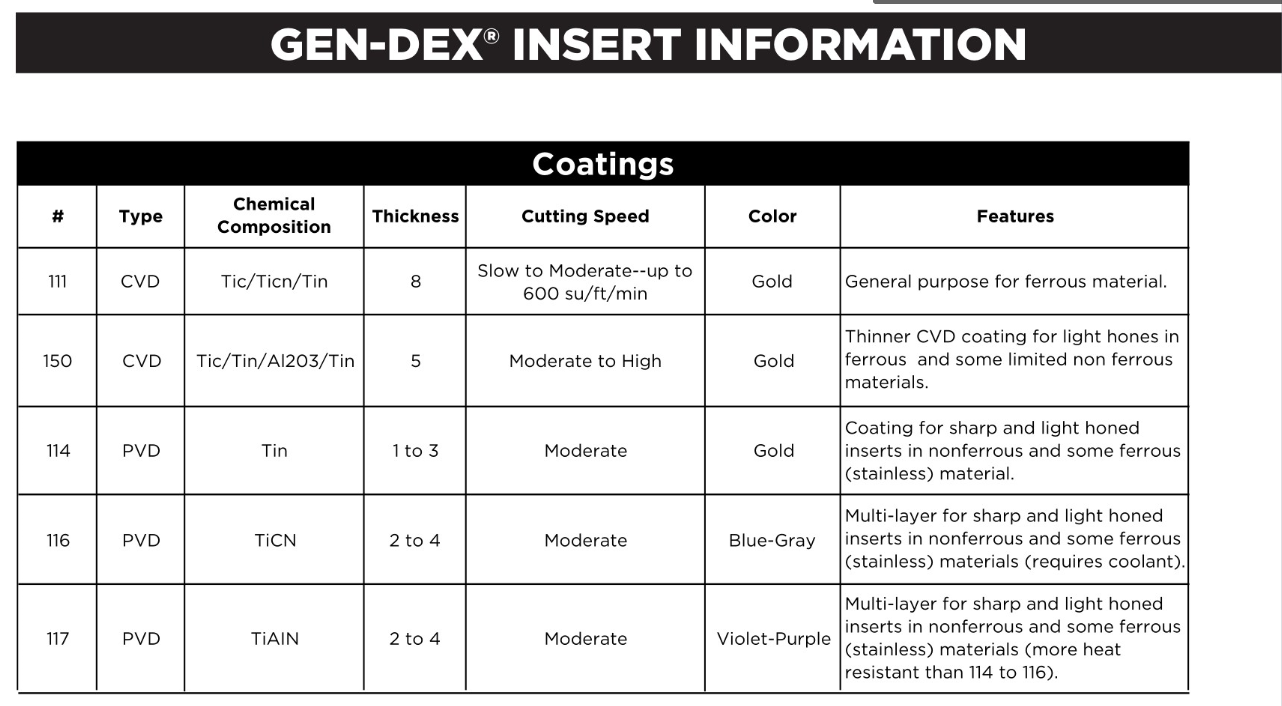

Coated Grades: as indicated by number following (slash) Example: SCCT32.52A/114 (See Coatings Chart)

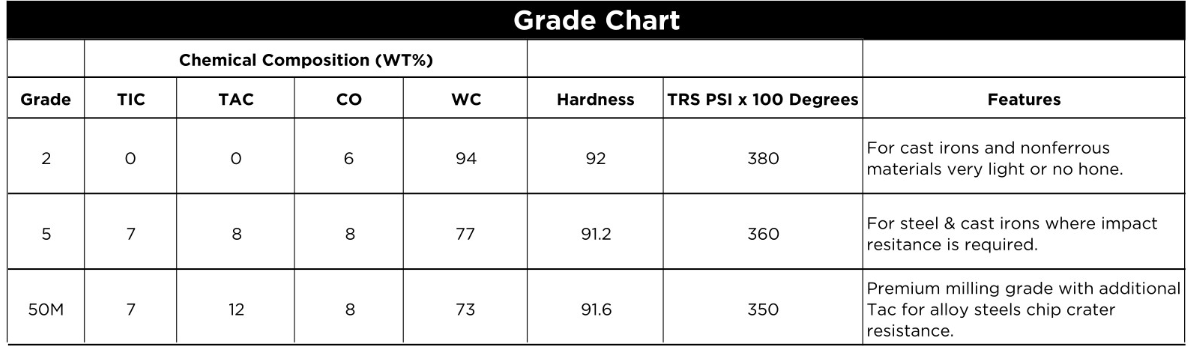

Non-Coated and Substrates for Coatings:
